⚡ Old fuse box? Tripping breakers? Here’s everything you need to know about upgrading your DB board.
If your home still has an old fuse box with wire fuses that blow, or your circuit breakers trip constantly, you’re not alone. Thousands of homes in Johannesburg, Pretoria, Cape Town, and Durban were built before modern electrical standards – and their electrical panels are now outdated, unsafe, or struggling to cope with modern appliances.
This comprehensive guide covers circuit breaker and fuse box upgrade costs, what’s involved, and why it’s essential for safety. We’ve gathered pricing data from registered electricians across South Africa to give you accurate, current figures.
📋 SAFETY FIRST: Old fuse boxes with wire fuses are no longer compliant with SANS 10142 wiring regulations. Upgrading to circuit breakers with earth leakage protection is essential for your family’s safety and may be required for insurance validity.
Need to upgrade your DB board?
Get free, no-obligation quotes from registered electricians in your area – compare prices for circuit breaker upgrades and fuse box replacements.
Servicing Johannesburg, Pretoria, Cape Town, Durban, and nationwide
📋 Table of Contents – Circuit Breaker & Fuse Box Guide

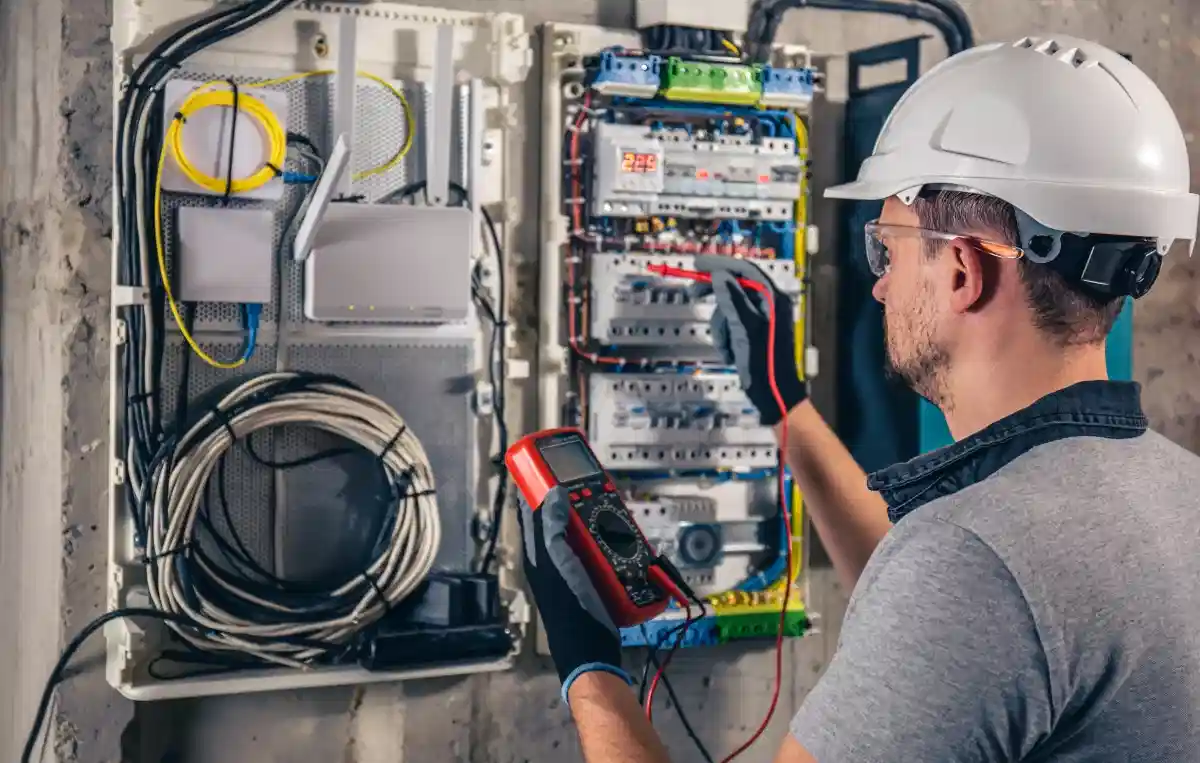

🔌 Fuse Box vs Circuit Breakers – What’s the Difference?
Many homeowners don’t know what type of electrical panel they have. Here’s how to tell :
🕰️ Old Fuse Box (Wire Fuses)
- ✓ Uses screw-in or cartridge fuses with thin wire that melts when overloaded
- ✓ When a fuse “blows,” you must replace it with a new one
- ✓ No earth leakage protection (life-saving device)
- ✓ Common in homes built before 1990
- ✓ DANGER: Risk of over-fusing – people put in higher amp fuses to stop blowing, causing fire risk
- ✓ No longer compliant with SANS 10142 for new installations

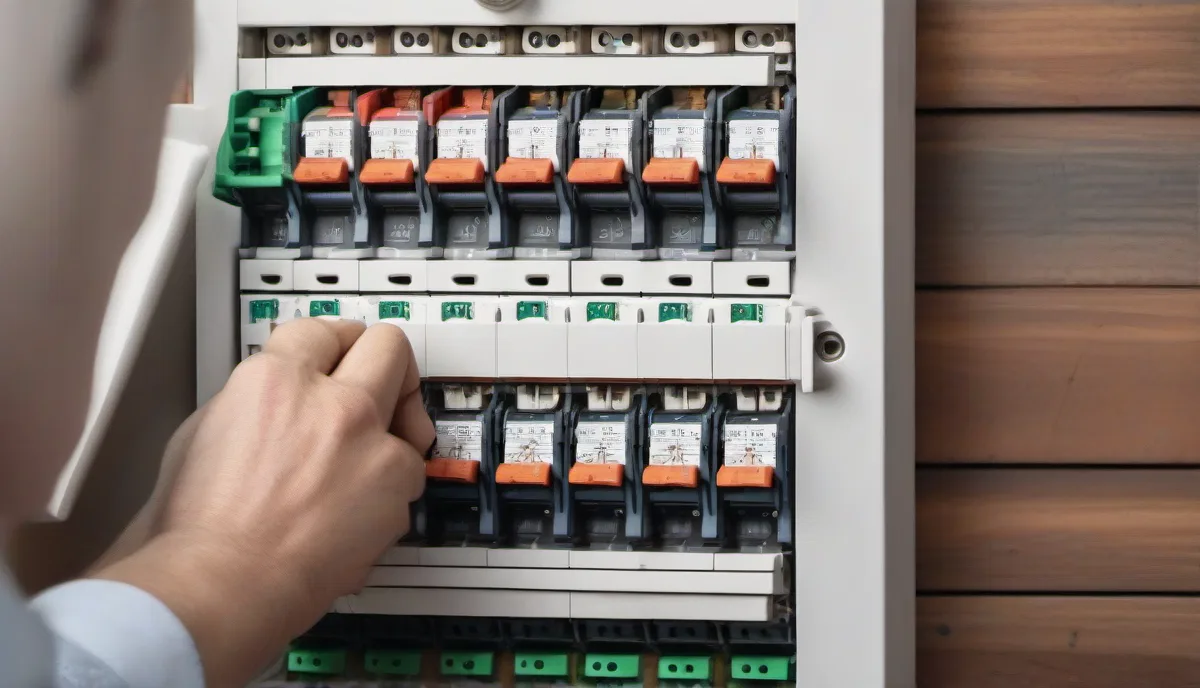

⚡ Modern Circuit Breaker DB Board
- ✓ Uses switches (breakers) that trip when overloaded
- ✓ Simply reset by flipping switch back ON
- ✓ Includes earth leakage protection (RCD) for life safety
- ✓ Common in homes built after 1995 or upgraded
- ✓ SAFER: Correct breakers for each circuit, proper labelling
- ✓ Meets current SANS 10142 requirements
If you’re unsure which you have, look at your DB board. Fuse boxes have round screw-in fuses or rectangular cartridge holders. Circuit breakers have switches – usually labelled with amperage (16A, 20A, etc.) .
⚠️ 7 Signs You Need a Circuit Breaker or Fuse Box Upgrade
1. Frequent Breaker Tripping
If breakers trip constantly, it could mean undersized circuits for modern loads, or failing breakers. A properly sized system should rarely trip .
2. Warm or Hot Breakers
Breakers that feel warm to touch indicate loose connections or overloading – a fire risk. Call an electrician immediately .
3. Still Using Old Fuse Box
If you have wire fuses, your system is decades out of date. Fuse boxes lack earth leakage protection and are dangerous with modern loads .
4. No Earth Leakage Protection
If your DB board doesn’t have a large switch marked “Earth Leakage” or “RCD,” you lack life-saving protection against electric shock .
5. Adding Major Appliances
Installing a pool pump, air conditioner, or geyser timer? Your existing DB may not have capacity or correct breakers for new loads .
6. Home Renovations
Any major renovation affecting electrical circuits requires a COC – often revealing the need for DB upgrades to meet current standards .
7. Insurance or COC Requirement
Many insurers now require compliant DB boards. If you’re selling, the COC inspection may flag non-compliant fuse boxes .
💰 Circuit Breaker & Fuse Box Upgrade Costs South Africa
The cost to upgrade your DB board depends on what you currently have, the size of your home, and what needs replacing .
Complete DB Board Upgrade Costs
| Upgrade Type | Typical Scope | Cost Range (Installed) | Includes COC? |
|---|---|---|---|
| Replace individual breakers | Swap faulty breakers, same board | R600 – R1,200 per breaker | ✅ Yes |
| Add earth leakage protection | Install earth leakage unit, rewire circuits | R2,500 – R4,500 | ✅ Yes |
| Fuse box to breaker conversion | Replace old fuse box with modern DB, new breakers, earth leakage | R4,500 – R8,500 | ✅ Yes |
| Full DB board replacement (small home) | New enclosure, all new breakers, earth leakage, surge protection optional | R5,500 – R9,500 | ✅ Yes |
| Full DB board replacement (3-bed home) | 12-16 circuits, earth leakage, surge protection optional | R7,500 – R12,500 | ✅ Yes |
| Full DB board replacement (large home) | 20+ circuits, multiple earth leakages, three-phase | R12,000 – R18,000+ | ✅ Yes |
Old Fuse Box to Circuit Breaker Conversion – Detailed Costs
| Property Size | Typical Circuits | Labour | Materials | Total Installed |
|---|---|---|---|---|
| 1-bedroom flat | 4-6 circuits | R2,000 – R3,000 | R2,500 – R4,000 | R4,500 – R7,000 |
| 2-bedroom home | 6-8 circuits | R2,500 – R3,500 | R3,000 – R4,500 | R5,500 – R8,000 |
| 3-bedroom home | 8-12 circuits | R3,000 – R4,500 | R3,500 – R6,000 | R6,500 – R10,500 |
| 4-bedroom / large home | 12-16 circuits | R4,000 – R6,000 | R4,500 – R7,500 | R8,500 – R13,500 |
Additional Costs to Consider
- Surge protection device (SPD): R1,500 – R3,500 – highly recommended, especially in lightning-prone areas like Durban North
- Additional circuits: Adding new circuits for pool, aircon, etc. – R1,500 – R3,000 per circuit
- Three-phase upgrade: If changing from single to three-phase – R8,000 – R15,000+ depending on supply requirements
- Wiring repairs: If old wiring is discovered during upgrade – R500 – R5,000+ depending on extent
- COC certificate: Included in above prices (always confirm)
Budgeting tip: For most 3-bedroom homes in Sandton or Cape Town, budget R7,000 – R12,000 for a complete DB board upgrade including new breakers, earth leakage, and COC. Adding surge protection adds R1,500 – R3,000 .
🛡️ Earth Leakage Upgrade – Why It’s Non-Negotiable
Earth leakage protection (also called RCD or safety switch) is now mandatory on all circuits in new installations and upgrades . Here’s why :
⚠️ IF YOUR DB BOARD HAS NO EARTH LEAKAGE:
Your home lacks life-saving protection. Earth leakage detects tiny current leaks (30mA) and cuts power in milliseconds – before a fatal shock occurs. Upgrading to include earth leakage is the most important safety improvement you can make .
Earth Leakage Requirements Under SANS 10142
- All socket outlet circuits (plugs) must be protected by earth leakage
- Lighting circuits may also be protected (recommended)
- Earth leakage must trip within 0.2-0.4 seconds at 30mA
- Regular testing (monthly) is required – press the “Test” button
During a DB board upgrade, your electrician will ensure proper earth leakage protection is installed. This typically involves :
- One main earth leakage unit protecting multiple circuits, OR
- Multiple earth leakages for different sections of the home (recommended for larger homes to avoid nuisance tripping)
📏 Circuit Breaker Sizing Guide – 20A vs 30A vs 50A
One of the most common DIY mistakes is installing incorrectly sized breakers. Here’s what each size is for :
| Breaker Size | Typical Uses | Cable Size Required | Maximum Load |
|---|---|---|---|
| 6A or 10A | Lighting circuits | 1.0mm² or 1.5mm² | 1,300W – 2,300W |
| 16A | General plug circuits (older homes) | 1.5mm² | 3,600W |
| 20A | Standard plug circuits (modern homes) | 2.5mm² | 4,600W |
| 25A or 32A | Dedicated appliance circuits (geyser, oven) | 4.0mm² or 6.0mm² | 5,700W – 7,300W |
| 40A or 50A | Stove, air conditioner, sub-mains | 6.0mm² or 10mm² | 9,200W – 11,500W |
⚠️ CRITICAL SAFETY RULE:
The breaker must be sized to protect the wiring. Putting a 20A breaker on 1.5mm² cable (rated for 16A) means the cable could overheat and catch fire before the breaker trips. This is a leading cause of electrical fires in older homes .
🔧 DB Board Components – What’s Inside
Your Distribution Board contains several critical components. Understanding them helps you know what’s being upgraded :
Main Switch
Isolates entire house from grid supply. Must be accessible and clearly labelled .
Earth Leakage (RCD)
Life-saving device that trips when current leaks to earth. Protects against electric shock .

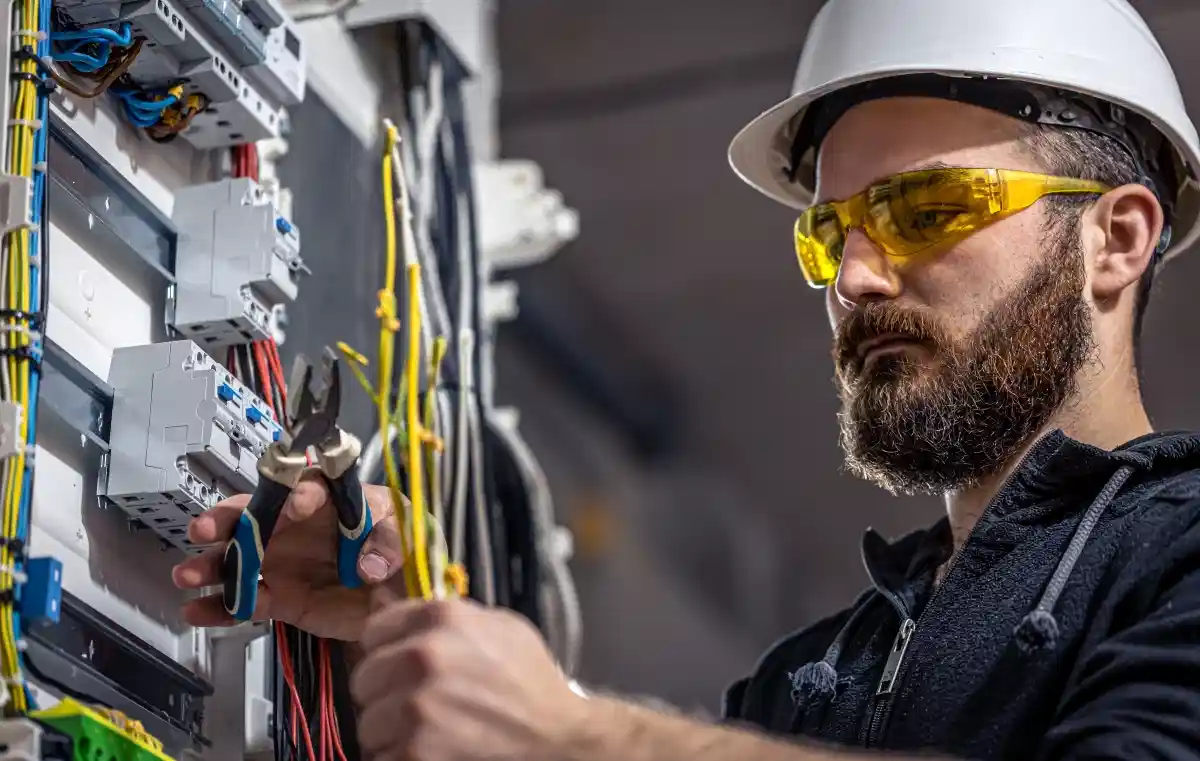

Circuit Breakers (MCBs)
Protect individual circuits from overload and short circuits. Trip and can be reset .
Neutral Bar
Where all neutral wires connect. Must be properly bonded and labelled .
Earth Bar
Where all earth wires connect. Must have proper earth continuity .
Busbar
Metal strip distributing power to all breakers. Must be protected against accidental contact .
📋 The DB Board Upgrade Process – Step by Step
Step 1: Initial Inspection
Electrician assesses existing DB, checks wiring condition, identifies number of circuits needed, and discusses your requirements .
Step 2: Quotation
Detailed quote including new DB board, breakers, earth leakage, labour, and COC. May include surge protection option .
Step 3: Preparation
Electrician turns off mains supply. May need to coordinate with your schedule – best done during daytime .
Step 4: Removal
Old fuse box or DB board removed carefully. Wires labelled for reconnection .
Step 5: New Board Installation
New enclosure mounted, busbars installed, breakers fitted, earth leakage connected .
Step 6: Wiring Reconnection
All circuits reconnected to correct breakers. Neutrals to neutral bar, earths to earth bar .
Step 7: Testing
Earth leakage test, earth continuity, insulation resistance, polarity checks on all circuits .
Step 8: COC Issued
Certificate of Compliance provided. All circuits labelled clearly .
A typical DB board upgrade takes 4-8 hours depending on home size and complexity. Your power will be off during this time – plan accordingly .
📜 DB Board Regulations – SANS 10142 Requirements
Your upgraded DB board must comply with current SANS 10142 standards :
- Earth leakage protection: All socket outlet circuits must have RCD protection (30mA trip current)
- Circuit separation: Lighting and plug circuits should be separate
- Breaker sizing: Breakers must match cable sizes (e.g., 20A max on 2.5mm²)
- Labelling: All circuits must be clearly labelled (e.g., “Lights – Kitchen,” “Plugs – Lounge”)
- Busbar protection: Live busbars must be shielded against accidental contact
- Accessibility: DB board must be easily accessible, not blocked by furniture
- Surge protection: Increasingly recommended, though not yet mandatory for all homes
📄 COC After DB Board Upgrade – Mandatory
Any work on your DB board requires a Certificate of Compliance (COC). This is not optional – it’s the law .
- What the COC confirms: Your upgraded DB board meets SANS 10142 standards, all testing passed, installation is safe
- Who issues it: Only the registered electrician who did the work (or another registered electrician after inspection)
- Keep it safe: You’ll need it when selling your home, and insurers may ask for it
Read our complete guide: Electrical Compliance Certificates South Africa
⚡ Surge Protection – Should You Add It During Upgrade?
While not yet mandatory for all homes, surge protection devices (SPDs) are highly recommended, especially in lightning-prone areas :
Protects Against Lightning
In areas like Durban North and the Highveld, lightning strikes cause voltage surges that damage electronics .
Grid Switching Surges
When Eskom restores power after loadshedding, voltage spikes can destroy sensitive equipment .
Protects Expensive Electronics
TVs, computers, inverters, and fridges are all vulnerable to surges .
Whole-Home Protection
A Type 2 SPD installed in your DB board protects all circuits – far better than individual plug-in protectors .
Cost: Adding surge protection during a DB board upgrade costs R1,500 – R3,500 – a small price for protecting R50,000+ of electronics .
📍 DB Board Upgrade Costs by Region
⚡ Johannesburg DB Board Upgrades
- Fuse box to breaker conversion (3-bed): R6,500 – R10,500
- Full DB replacement (3-bed): R7,500 – R12,500
- Popular suburbs: Sandton, Fourways, Midrand, Bryanston
⚡ Pretoria DB Board Upgrades
- Fuse box to breaker conversion (3-bed): R6,000 – R10,000
- Full DB replacement (3-bed): R7,000 – R12,000
- Popular suburbs: Pretoria East, Centurion, Waterkloof
⚡ Cape Town DB Board Upgrades
- Fuse box to breaker conversion (3-bed): R6,500 – R11,000
- Full DB replacement (3-bed): R7,500 – R13,000
- Popular suburbs: Southern Suburbs, Atlantic Seaboard, Stellenbosch
⚡ Durban DB Board Upgrades
- Fuse box to breaker conversion (3-bed): R6,500 – R10,500
- Full DB replacement (3-bed): R7,500 – R12,500
- Surge protection recommended: Add R1,500 – R3,500 (lightning-prone area)
- Popular suburbs: Durban North, Umhlanga, Ballito
❌ 8 Common DB Board Upgrade Mistakes
Avoid these costly errors:
- Using unregistered electricians: Only registered electricians with Wireman’s License can legally do DB work and issue COCs .
- Not adding earth leakage: Some older homes still have no earth leakage. An upgrade without adding it is a missed safety opportunity .
- Incorrect breaker sizing: Putting wrong breakers on existing wiring creates fire risk .
- Skipping surge protection in lightning areas: In Durban or the Highveld, this is a false economy .
- No labelling: Unlabelled circuits make future fault finding expensive and dangerous .
- DIY upgrades: Illegal and deadly. DB board work must be done by registered electricians .
- Not checking for hidden wiring issues: Old wiring discovered after upgrade can mean unexpected costs .
- Forgetting the COC: Without a COC, your upgrade isn’t legal and insurance is invalid .
Ready to Upgrade Your DB Board?
Get quotes from registered, verified electricians in your area – compare prices for circuit breaker upgrades and fuse box replacements.
Serving Johannesburg, Pretoria, Cape Town, Durban, and nationwide
❓ Frequently Asked Questions
How much does it cost to upgrade a fuse box to circuit breakers?
For a typical 3-bedroom home, converting an old fuse box to modern circuit breakers costs R6,500 – R10,500 fully installed including earth leakage and COC. Smaller homes cost less, larger homes more .
Can I replace a circuit breaker myself?
No. In South Africa, only registered electricians with Wireman’s License can legally work on DB boards. DIY breaker replacement is illegal, dangerous, and will void your insurance. Always use a professional .
How long does a DB board upgrade take?
Most residential upgrades take 4-8 hours. Your power will be off during this time, so plan accordingly. Complex homes or those with wiring issues may take longer .
Do I need a COC after a DB board upgrade?
Yes – absolutely. Any electrical work on your DB board requires a Certificate of Compliance. Your electrician must provide one after the upgrade. Without it, the work is illegal and your insurance may be invalid .
What’s the difference between 20A and 30A breakers?
20A breakers are standard for plug circuits, protecting 2.5mm² cable and handling up to 4,600W. 30A breakers are for dedicated appliance circuits (geysers, ovens) with thicker cable. Using the wrong size creates fire risk .
Why does my earth leakage keep tripping after upgrade?
Could be: faulty appliance (often geyser element), moisture in outlets, or wiring fault. Your electrician should test after installation – if it starts later, call them back to diagnose .
Should I add surge protection during my upgrade?
Highly recommended, especially in lightning-prone areas like Durban North or the Highveld. For R1,500 – R3,500 extra, you protect all your electronics from voltage spikes .
My house was built in 1985 – do I need a DB upgrade?
Probably yes. Homes of this era often have no earth leakage protection, outdated breakers, and wiring that may not cope with modern loads. A safety inspection is recommended .
Can a DB board upgrade reduce my electricity bill?
Not directly – but it enables safer addition of energy-saving devices like geyser timers, solar, and efficient appliances. It also prevents waste from faulty circuits .
What’s the lifespan of a modern circuit breaker?
Quality breakers last 20-30 years, but they can fail earlier if frequently tripping or exposed to surges. If you have breakers that trip often, they may need replacement .
✅ Final Thoughts – Is a DB Board Upgrade Worth It?
Upgrading your fuse box or circuit breaker panel is one of the most important investments you can make in your home’s safety. Key takeaways:
- Cost: R4,500 – R12,500 depending on home size and scope
- Safety gain: Earth leakage protection prevents fatal shocks
- Fire prevention: Correct breakers eliminate overheating risks
- Compliance: Meets SANS 10142 standards, essential for selling
- Peace of mind: Modern DB boards are reliable, labelled, and safe
⚡ The Bottom Line:
R7,000 – R12,000
buys a complete DB board upgrade for most 3-bedroom homes – a small price for life-saving protection
Your 5-Step Action Plan
- Check your DB board – do you have old fuse box? Earth leakage?
- Note any warning signs – tripping, warm breakers, burning smells
- Get 2-3 quotes from registered electricians in your area
- Verify credentials – Wireman’s License, ECASA registration, insurance
- Schedule upgrade – ensure you receive COC and test report
Ready to Upgrade Your DB Board?
Connect with registered, verified electricians in your area – compare quotes and ensure your home’s electrical safety.
📞 Call us: 073 138 4726 for expert advice
Free site inspections •
How to choose a contractor •
Our guarantees
📚 Official resources & standards:
- SABS (SANS 10142) – Wiring regulations and DB board standards
- ECASA (Electrical Contractors Association) – Upgrade compliance requirements
- NHBRC – New build electrical specifications
Prices accurate as of current market rates. Always verify current quotes with local electricians. This guide is for informational purposes and does not constitute a quote.
Written by: Innocent T Hanyani
21+ years construction and digital industry experience, ServiceLink SA
Innocent has overseen hundreds of DB board upgrades and electrical compliance certifications across South Africa, working closely with registered electricians and industry bodies. His expertise ensures this guide reflects current regulations and practical realities for homeowners.
📖 Related Guides:
