Heated Tile Floor Installation Cost in South Africa: Complete Guide
🔥 From electric mats to thermostats – everything you need to budget for radiant heating under tiles
Imagine stepping onto your bathroom floor on a cold winter morning – and it’s warm. No more cold shock. No more shivering. Just comfortable, gentle warmth underfoot. That’s the luxury of heated tile floors.
I’ve installed heated flooring systems across Gauteng, Johannesburg, and Pretoria for years. The upfront cost is higher than standard tiling, but the comfort and energy efficiency make it worthwhile – especially in bathrooms, kitchens, and living areas. But how much does heated tile floor installation cost exactly? And is it worth the investment?
In this complete guide to heated tile floor installation cost sa, I’ll break down every cost component. You’ll learn about different radiant heating systems (electric vs hydronic), material costs, installation labour, running costs, and long-term savings. By the end, you’ll know exactly what to budget for underfloor heating tiling in your home.
For more cost information, check out our guides on tile installation cost per square meter, floor leveling guide, tile installation tools, and tile adhesives explained.
📋 Table of Contents – Heated Tile Floor Cost Guide
🔥 Why Choose Heated Tile Floors?
Before diving into heated tile floor installation cost sa, understand the benefits:
Benefits of Underfloor Heating:
- Comfort: Warm floors eliminate cold shock – especially valuable in bathrooms and kitchens
- Energy efficient: Radiant heating uses less energy than forced-air systems – read energy efficiency guidelines
- Even heat distribution: No cold spots – whole floor radiates warmth evenly
- Invisible: No radiators on walls – more design freedom
- Allergy-friendly: No air circulation means less dust and allergen movement
- Adds home value: Heated floors are a premium feature that buyers love
- Works with any tile: Compatible with ceramic, porcelain, stone, and even vinyl
Best Rooms for Heated Floors:
- Bathrooms (most popular – warm tiles after shower)
- Kitchens (comfort while standing for long periods)
- Living rooms and open-plan areas
- Bedrooms (especially in colder regions)
- Entryways and hallways
According to SANS 10400 heated floor standards, proper installation is essential for safety and efficiency.
⚡ Types of Underfloor Heating Systems – Electric Floor Heating vs Hydronic
The two main radiant heating options for heated tile floor installation cost sa:
| Feature | Electric (Cable/Mat) | Hydronic (Wet System) |
|---|---|---|
| How it works | Electric resistance cables or mats under tiles | Hot water circulated through pipes under floor |
| Installation cost/m² | R600 – R1,200 | R1,200 – R2,500 |
| Running cost | Higher (electricity) | Lower (gas/heat pump/solar) |
| Best for | Small areas (bathrooms, kitchens) | Large areas (whole house, open-plan) |
| Floor height increase | 8-15mm | 25-50mm |
| Installation complexity | Moderate | High (needs boiler/heat pump) |
| Warm-up time | 30-60 minutes | 1-3 hours |
| Zoning capability | Excellent (per room thermostats) | Good (requires manifold system) |
Most Common for SA Homes: Electric underfloor heating is the preferred choice for bathrooms, kitchens, and small-to-medium areas. It’s easier to install, faster to heat, and more affordable upfront.
For whole-house heating, consider hydronic systems – but consult a specialist for electrical services and plumbing requirements.
💰 Complete Heated Tile Floor Installation Cost Breakdown
Here’s what makes up your heated tile floor installation cost sa:
| Cost Component | Typical Range | Notes |
|---|---|---|
| Heating mat/cable (material/m²) | R400 – R800 | Includes cable, mat, and basic thermostat |
| Programmable thermostat | R800 – R2,500 | Smart thermostats cost more – allows scheduling |
| Floor sensor | R150 – R300 | Included with some kits |
| Self-levelling compound (over cables) | R150 – R300/m² | Encapsulates heating elements – read leveling guide |
| Tile installation labour (standard) | R150 – R250/m² | Excludes heating system installation – read cost guide |
| Heating system installation labour | R500 – R1,500 flat fee | Electrician typically charges per job, not per m² |
| Electrical connection | R500 – R1,500 | Connecting to circuit breaker – read electrical services |
| Subfloor preparation | R100 – R300/m² | Leveling, cleaning, priming – read preparation guide |
| Total installed (electric) per m² | R800 – R1,800 | Materials + labour + preparation |
Example Total Costs for Typical Rooms:
- Small bathroom (5m²): R4,000 – R9,000
- Medium bathroom (8m²): R6,400 – R14,400
- Kitchen (15m²): R12,000 – R27,000
- Open-plan living (30m²): R24,000 – R54,000
For a complete breakdown of tile costs, read our tile installation cost per square meter guide.
Ready to Get Quotes for Heated Floors?
Get free quotes from verified tiling and electric floor heating specialists who can provide accurate heated tile floor installation cost sa estimates.
Free inspections available. Beat Your Quote guarantee.
📏 Cost Per Square Meter by System Type
Detailed radiant heating costs per square meter:
| System Type | Materials/m² | Installation/m² | Total/m² | Best For |
|---|---|---|---|---|
| Heating cable (loose) | R400 – R600 | R250 – R400 | R650 – R1,000 | Irregular shapes, custom layouts |
| Heating mat (pre-spaced) | R500 – R800 | R200 – R300 | R700 – R1,100 | Square/rectangular rooms, faster install |
| Hydronic (water-based) | R800 – R1,500 | R400 – R1,000 | R1,200 – R2,500 | Large areas, whole-house heating |
| Thin-film electric | R600 – R900 | R200 – R300 | R800 – R1,200 | Retrofits, low-profile systems |
Add Tile Costs: Remember to add tile material and installation (R350-800/m²) to these totals for complete floor cost.
For tool requirements, read our tile installation tools guide.
⚡ Running Costs and Energy Efficiency of Electric Floor Heating
Understanding operational costs for heated tile floor installation cost sa includes long-term expenses:
Typical Power Consumption:
- Electric underfloor heating: 100-150 watts per square meter
- Small bathroom (5m²): 500-750 watts
- Medium bathroom (8m²): 800-1,200 watts
- Kitchen (15m²): 1,500-2,250 watts
Estimated Monthly Running Costs (using programmable thermostat):
- Small bathroom (used 2 hours/day): R50 – R100 per month
- Medium bathroom (used 3 hours/day): R100 – R200 per month
- Kitchen (used 4 hours/day): R200 – R400 per month
- Living area (used 6 hours/day): R400 – R800 per month
Energy-Saving Tips:
- Use programmable thermostats – set to warm up before you wake, turn off when away
- Install good insulation under heating system (reduces heat loss downward)
- Use zoning – only heat rooms you use
- Set temperature to 22-24°C for comfort – every degree higher increases cost by 10%
- Combine with solar power for near-zero running costs – read electrical services
For energy efficiency standards, refer to Department of Energy guidelines.
🔧 Step-by-Step Heated Tile Floor Installation Process
Understanding the process helps you budget for heated tile floor installation cost sa:
Step 1: Subfloor Preparation
Clean, level, and prime the subfloor. Install insulation boards (recommended) to prevent heat loss downward – read floor leveling guide.

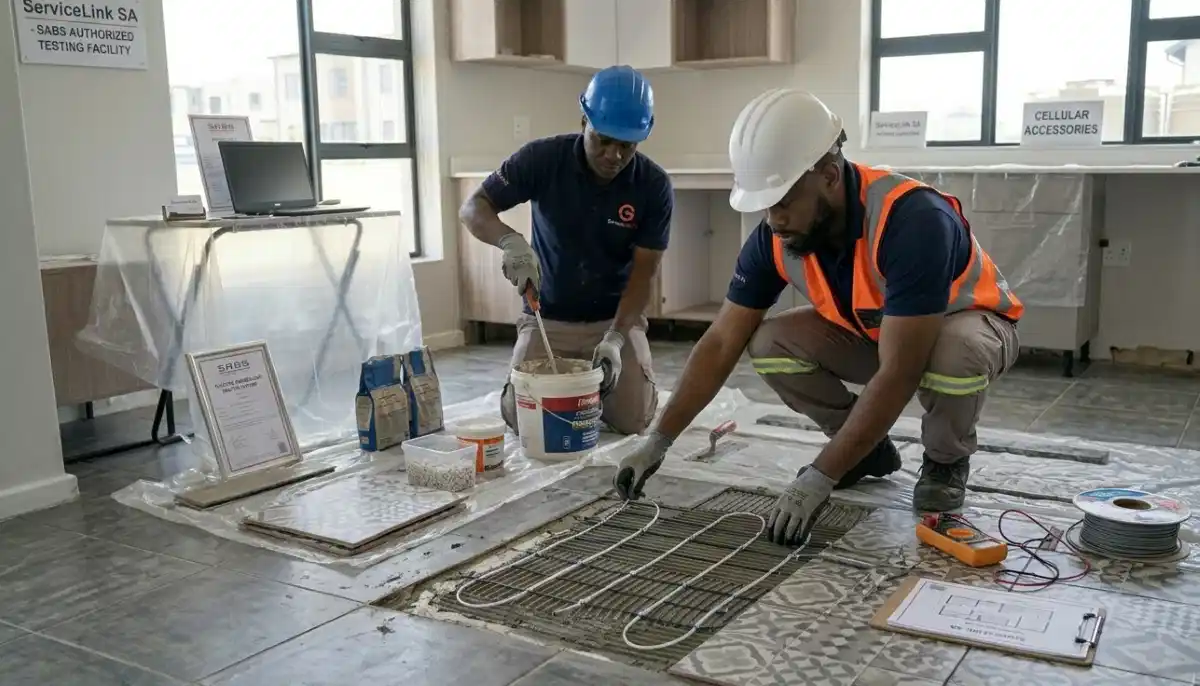

Step 2: Install Heating Elements
Lay heating mats or cables according to manufacturer instructions. Ensure even spacing – no overlapping. Leave gap around toilet flanges and fixtures.
Step 3: Install Floor Sensor
Place floor sensor in conduit between heating wires. This measures actual floor temperature for the thermostat.
Step 4: Electrical Connection
Licensed electrician connects heating system to thermostat and circuit breaker – electrical services. Test resistance before proceeding.
Step 5: Apply Self-Levelling Compound
Pour self-levelling compound over heating elements to encapsulate them and create flat surface – read self-levelling guide.
Step 6: Allow to Cure
Wait 24-48 hours for compound to cure completely.
Step 7: Install Tiles
Tile over cured compound using flexible thin-set adhesive (polymer-modified). Use plastic or rubber trowels – metal can damage heating wires.
Step 8: Grout and Seal
Grout tiles after adhesive cures (48 hours). Use flexible grout for heated floors.
Step 9: Final Electrical Testing
Electrician tests system again after tiling to ensure no damage occurred. Install thermostat and program settings.
Step 10: Enjoy Warm Floors!
Wait 7-14 days for adhesive and grout to fully cure before turning on heating.
For adhesive guidance, read our tile adhesives explained guide.
🛁 Bathroom Heated Floor Costs (Most Popular)
Bathrooms are the #1 application for heated tile floor installation cost sa:
| Bathroom Size | Heating System Cost | Tile Installation Cost | Total Installed |
|---|---|---|---|
| Guest toilet (2m²) | R1,600 – R3,600 | R700 – R1,600 | R2,300 – R5,200 |
| Small bathroom (4m²) | R3,200 – R7,200 | R1,400 – R3,200 | R4,600 – R10,400 |
| Standard bathroom (6m²) | R4,800 – R10,800 | R2,100 – R4,800 | R6,900 – R15,600 |
| Master bathroom (10m²) | R8,000 – R18,000 | R3,500 – R8,000 | R11,500 – R26,000 |
Bathroom-Specific Considerations:
- Leave gaps around toilet flanges and drains
- Waterproofing must be installed before heating (in wet areas)
- Use programmable thermostat – warm floors before morning shower
- Consider heated towel rail as add-on (separate circuit)
For waterproofing guidance, read our waterproofing guide.
🍳 Kitchen and Living Area Heated Floor Costs
Larger areas have different heated tile floor installation cost sa considerations:
| Area Size | Heating System Cost | Tile Installation Cost | Total Installed |
|---|---|---|---|
| Small kitchen (10m²) | R8,000 – R18,000 | R3,500 – R8,000 | R11,500 – R26,000 |
| Medium kitchen (15m²) | R12,000 – R27,000 | R5,250 – R12,000 | R17,250 – R39,000 |
| Living room (20m²) | R16,000 – R36,000 | R7,000 – R16,000 | R23,000 – R52,000 |
| Open-plan (40m²) | R32,000 – R72,000 | R14,000 – R32,000 | R46,000 – R104,000 |
Considerations for Large Areas:
- Multiple heating mats/cables – need separate zones or multiple thermostats
- Hydronic systems may be more cost-effective for large areas
- Consider zoning – heat only occupied zones
- Insulation is critical for large areas to prevent heat loss
💡 How to Save on Heated Floor Installation
Reduce your heated tile floor installation cost sa with these strategies:
Where to Save:
- DIY preparation: Remove old flooring and clean subfloor yourself
- Choose heating mats over loose cables: Faster installation = lower labour
- Standard thermostat vs smart: Basic programmable thermostats cost less
- Tile choice: Ceramic tiles cost less than porcelain or natural stone – read tile comparison chart
- Simple layout: Straight lay pattern (no herringbone or diagonal)
- Off-peak installation: Winter months may have better rates
- Get multiple quotes: Use ServiceLink SA’s free quote service
Where NOT to Save:
- Quality heating system – cheap systems fail or heat unevenly
- Professional electrical installation – safety risk – licensed electrician required
- Insulation under heating – skipping insulation increases running costs by 30-50%
- Self-levelling compound – must fully encapsulate cables
Use our Beat Your Quote guarantee to ensure competitive pricing.
📈 ROI Analysis – Is Heated Tile Floor Worth It?
Evaluating heated tile floor installation cost sa against long-term value:
| Factor | Electric Underfloor Heating | Traditional Heating (Radiators) |
|---|---|---|
| Upfront cost (20m² room) | R23,000 – R52,000 | R15,000 – R30,000 (radiators + boiler) |
| Annual running cost | R2,400 – R4,800 | R3,000 – R6,000 |
| Lifespan | 20-30 years (heating cables) | 15-20 years |
| Home value increase | 5-10% (luxury feature) | Standard inclusion |
| Comfort factor | Excellent – warm floors | Good – warm air, cold floors |
Payback Period:
While upfront costs are higher, heated floors add significant home value and comfort. For bathrooms, the payback in enjoyment is immediate. For whole-house heating, payback through energy savings takes 5-10 years.
Best Value Scenario: Install in bathrooms and kitchens where you spend time barefoot. For whole-house heating, consider hydronic systems or heat pumps for better long-term ROI.
Consider our pay-later option to spread installation costs over time.
❓ Frequently Asked Questions About Heated Tile Floor Installation
How much does heated tile floor installation cost in South Africa?
How much does heated tile floor installation cost – electric underfloor heating costs R600-1,200/m² for materials plus R150-250/m² for tile installation. Total installed cost ranges from R800-1,800/m². A small bathroom (5m²) costs R4,000-9,000; a medium bathroom (8m²) costs R6,400-14,400. For accurate heated tile floor installation cost sa, get quotes from verified specialists.
Is electric underfloor heating expensive to run?
Electric floor heating running costs are moderate – R50-100/month for a small bathroom (used 2 hours daily), R100-200 for a medium bathroom, R200-400 for a kitchen. Using programmable thermostats and good insulation reduces costs significantly. Compared to space heaters, underfloor heating is more efficient because it heats the room evenly at lower temperatures.
Can I install underfloor heating under existing tiles?
Not without removing tiles. Heating elements must be installed on top of the subfloor, then covered with self-levelling compound before tiling. However, thin-film electric systems can sometimes be installed over existing floors with new flooring on top – but this raises floor height. For existing heated floors with failed elements, you typically need to remove tiles to access the system.
What’s better – heating mats or loose cables?
Heating mats are pre-spaced on mesh – faster to install, ideal for square/rectangular rooms, lower labour cost. Loose cables are more flexible – better for irregular shapes, around obstacles (toilets, cabinets), but slower installation. For most bathrooms, mats are recommended. For complex layouts, loose cables work better. Both provide the same heating performance.
Can I use any tiles over underfloor heating?
Yes – ceramic, porcelain, natural stone, and even vinyl tiles work over underfloor heating tiling. However, use flexible thin-set adhesive (polymer-modified) to accommodate thermal expansion. Natural stone requires extra care – temperature changes must be gradual. Avoid very thick tiles (over 20mm) – they reduce heat transfer efficiency. Read our adhesives guide for recommendations.
Do I need a licensed electrician for heated floor installation?
YES – by law, all electrical work including underfloor heating must be installed by a licensed electrician. They handle connection to circuit breaker, thermostat wiring, and final testing. DIY electrical work is dangerous, illegal, and voids warranties and insurance. Read our electrical services guide for finding qualified electricians.
How long does heated floor installation take?
Complete installation timeline: 1 day for subfloor prep and heating mat installation, 1 day for self-levelling compound (plus 24-48 hours curing), 1-2 days for tiling, 24-48 hours for adhesive to cure, then 7-14 days before turning on heating. Total: 7-10 days from start to first use. Allow extra time for large areas or complex layouts.
Can underfloor heating be used as the primary heat source?
Yes – electric underfloor heating can be a primary heat source for individual rooms, especially well-insulated bathrooms, kitchens, and extensions. For whole-house heating, hydronic (water-based) systems are more cost-effective for large areas. However, radiant heating works best as supplemental heat in South African homes, combined with heat pumps or solar for energy efficiency.
✅ Final Thoughts: Warm Floors, Happy Home
Heated tile floor installation cost sa ranges from R4,000-9,000 for a small bathroom to R46,000-104,000 for open-plan living areas. While upfront costs are higher than standard tiling, the comfort, energy efficiency, and home value increase make it worthwhile – especially in bathrooms and kitchens where you spend time barefoot.
The key to success is proper planning: choose the right system (electric mats for most homes), hire licensed electricians, use quality materials, and follow the correct installation sequence. Cut corners, and you’ll pay more in repairs later.
Key takeaways for heated tile floors:
- Electric underfloor heating costs R800-1,800/m² fully installed
- Small bathroom (5m²): R4,000-9,000; medium bathroom (8m²): R6,400-14,400
- Running costs: R50-200/month for bathrooms (with programmable thermostat)
- Must use licensed electrician – DIY electrical work is illegal and dangerous
- Use flexible thin-set adhesive and allow proper curing before turning on heating
- Install insulation under heating to reduce running costs by 30-50%
- Best value: bathrooms and kitchens where you walk barefoot
- Get multiple quotes – use our free quote service and Beat Your Quote guarantee
Your next step: Ready to enjoy warm floors? Get free quotes from verified tiling and electric floor heating specialists who can provide accurate heated tile floor installation cost sa estimates for your home.
Ready to Install Heated Tile Floors?
Get free quotes from verified tiling and underfloor heating tiling specialists who can provide accurate heated tile floor installation cost sa estimates.
📞 Call us: 073 138 4726 to discuss your heated floor project.
Free inspections •
Beat Your Quote guarantee •
Pay-later options
Are You a Tiling or Electrical Professional?
Join ServiceLink SA’s network of verified contractors. Get qualified leads for heated floor and tiling projects.
📚 Official resources & standards referenced:
- SANS 10400 – South African National Standard for heated floor standards and installation requirements.
- Department of Energy – Energy efficiency guidelines for underfloor heating systems.
Information provided for general guidance. Electrical work must be done by licensed electricians – always comply with local regulations.
Written by: ServiceLink SA Research Team
Home Heating & Tiling Specialists
The ServiceLink SA Research Team has analysed hundreds of heated floor installations across South Africa. Our team works with tilers, electricians, and homeowners to understand the true costs – from materials and labour to long-term energy expenses. This guide distills our research into practical advice for homeowners considering radiant heating under tiles. We believe everyone deserves warm floors on cold winter mornings.
For more information about heated floors and tiling, explore our related resources: tile installation cost guide, floor leveling guide, tile installation tools, and tile adhesives guide. Learn about our process on what is ServiceLink SA and how our service works. Find tilers in your area: Gauteng, Johannesburg, and Pretoria. For related services, see our electrical services and flooring services guides.
